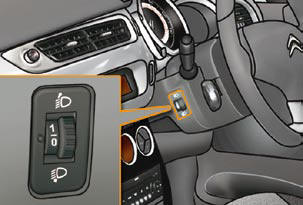

Headlamp adjustment
To avoid causing a nuisance to other road users, the height of the headlamps should be adjusted in relation to the load in the vehicle.
0 . 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 people + maximum authorised load.
3. Driver + maximum authorised load.
The initial setting is position "0" .
