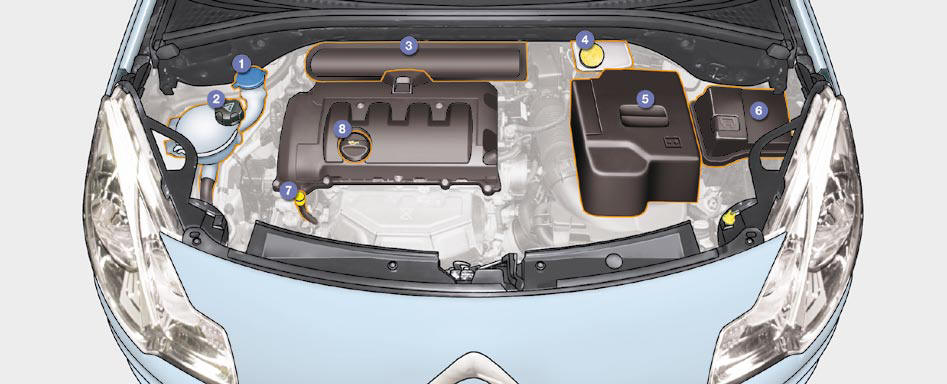

Petrol engines
1. Screenwash reservoir.
2. Coolant reservoir.
3. Air fi lter * .
4. Brake fl uid reservoir.
5. Battery.
6. Fuse box.
7. Engine oil dipstick.
8. Engine oil fi ller cap.
