Towing your vehicle

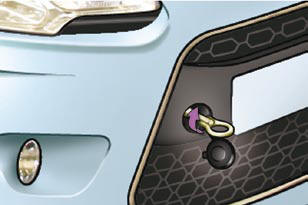

- On the front bumper, unclip the cover by pressing at the bottom.
- Screw the towing eye in fully.
- Install the towing bar.
- Switch on the hazard warning lamps on the towed vehicle.
- Place the gear lever in neutral (position N for an automatic gearbox).
Failure to observe this special condition could result in damage to certain braking components and the absence of braking assistance the next time the engine is started.
See also:
Putting the wheel back in place
Put the wheel back in its housing.
Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.
Tighten fully until the central bolt
clicks to retain th ...
Jack socket
This connection box, consisting of a
JACK socket is located on the centre
console.
It permits the connection of portable
equipment, such as a digital audio player
of the iPod ® type.
It reads ...
Headlamps
Front headlamp unit with Xenon bulbs (D1S)
Bulbs:
A S idelamp: W5W
B Dual-function Xenon lamp (dipped/main): D1S
C A ngular lighting: HP19
D Daytime-running lamp: HP24
For the maintenance of t ...
