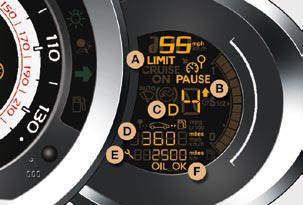

Screen
A. Speed limiter
(mph or km/h) or
Cruise control.
B. Gear change indicator.
C. Automatic gearbox information.
D. Range
(miles or km) or
Trip mileage recorder.
E. Service indicator
(miles or km), then
Total mileage recorder
These two functions are displayed
successively when switching on the
ignition
F. Engine oil level indicator
Appears a few seconds after switching
on the ignition, then disappears.
