Front seat belts
The front seat belts are fi tted with a pretensioning and force limiting system.
This system improves safety in the front seats in the event of a front impact.
Depending on the severity of the impact, the pretensioning system instantly tightens the seat belts against the body of the occupants.
The pretensioning seat belts are active when the ignition is on.
The force limiter reduces the pressure of the seat belt on the chest of the occupant, so increasing their protection.

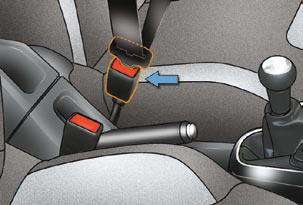

Fastening
- Pull the strap, then insert the tongue in the buckle.
- Check that the seat belt is fastened correctly by pulling the strap.
Unfastening
- Press the red button on the buckle.
- Guide the seat belt as it is reeled in.
Seat belt not fastened/ unfastened warning lamp
When the ignition is switched on, this warning lamp comes on in the instrument panel, if the driver and/or the front passenger has not fastened their seat belt.
From approximately 12 mph (20 km/h) this warning lamp fl ashes for two minutes accompanied by an audible signal of increasing volume. Once these two minutes have elapsed, this warning lamp remains on until the driver and/or the front passenger fastens their seat belt.
