Fuel tank

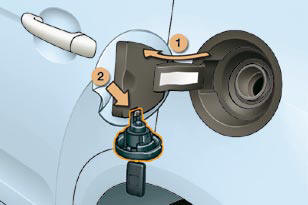

1. Opening the fuel fi ller fl ap.
2. Opening and hooking the fuel fi ller
cap.
Tank capacity:
- approximately 50 litres (petrol),
- approximately 45 litres (Diesel).
