Instruments and controls
1. Audio equipment steering wheel
controls.
2. Steering lock and ignition.
3. Wipers/wash-wipe/trip computer
controls.
4. Instrument panel.
5. Scented air freshener.
6. Driver’s airbag.
Horn.
7. Gear lever.
8. Parking brake.
9. Central armrest with storage.
10. Exterior mirror controls.
Electric window controls.
Rear doors and electric windows
deactivation control.
11. Storage compartment.
12. Electric child lock button or
Alarm button.
Electronic stability programme
button (ESP/ASR).
13. Side adjustable air vent.
14. Front door window demisting/
defrosting vent.
15. Speaker (tweeter).
16. Windscreen demisting/defrosting
vent.

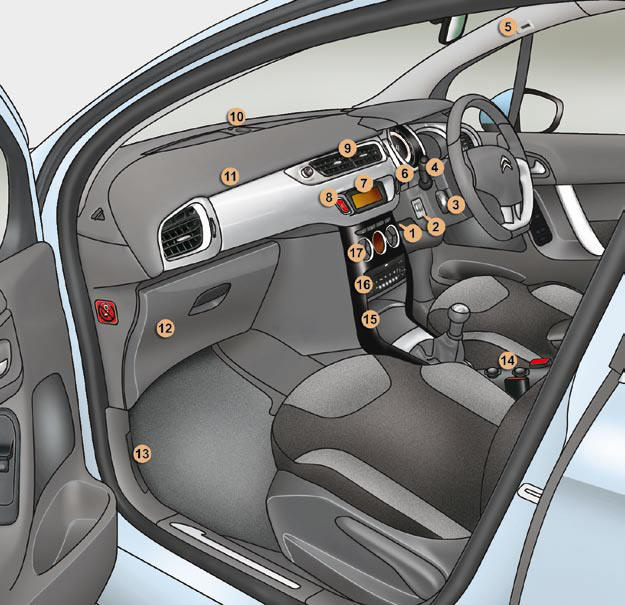

1. Steering wheel adjustment control.
2. Headlamp height adjustment.
3. Cruise control/speed limiter switch.
4. Lighting and direction indicators
control.
5. Microphone.
6. Central locking button.
7. Multifunction screen.
8. Hazard warning lamps switch.
9. Central adjustable air vents.
10. Sunshine sensor
HiFi audio system central speaker.
11. Passenger airbag.
12. Glove box/Passenger airbag
deactivation/Fusebox.
13. Bonnet release control.
14. 12 V accessory socket
USB port/Jack socket.
15. Upper and lower storage.
16. MyWay or Audio system.
17. Heating/air conditioning controls.
