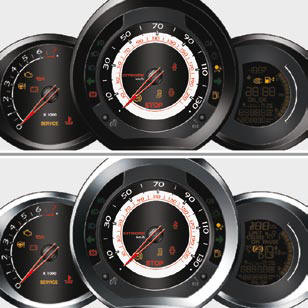

Warning lamps
1. With the ignition on, the orange and red warning lamps come on.
2. With the engine running, these warning lamps should switch off.
If a warning lamp remains on, refer to the page concerned.
