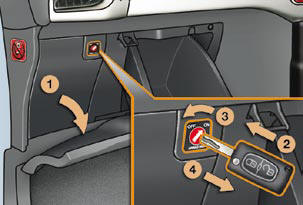

Front passenger’s airbag

1. Open the glove box.
2. Insert the key.
3. Select position:
"ON" (activation), with front passenger
or "forwards facing" child seat,
"OFF" (deactivation), with "rear facing"
child seat".
4. Remove the key keeping the switch
in the new position.
See also:
Summary table for the installation of ISOFIX child seats
In accordance with European regulations, this table indicates the options for
the installation of ISOFIX child seats on the vehicle
seats fi tted with ISOFIX mountings.
In the case of the universal ...
Headlamps
Front headlamp unit with Xenon bulbs (D1S)
Bulbs:
A S idelamp: W5W
B Dual-function Xenon lamp (dipped/main): D1S
C A ngular lighting: HP19
D Daytime-running lamp: HP24
For the maintenance of t ...
Fuses under the dashboard
Fuse box
Fuse box
To access the engine compartment fusebox, detach and remove the cover.
After any repair, reclose the cover very carefully. If the cover is not correctly
positioned o ...
