Automatic lighting
The sidelamps and dipped headlamps are switched on automatically, without any action on the part of the driver, when a low level of external light is detected or in certain cases of activation of the windscreen wipers.
As soon as the brightness returns to a suffi cient level or after the windscreen wipers are switched off, the lamps are switched off automatically.
Activation

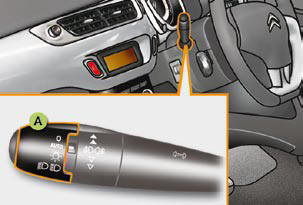

Turn ring A to the "AUTO" position. The automatic lighting is accompanied by a message on the multifunction screen.
Deactivation
Turn ring A to a position other than "AUTO" . Deactivation is accompanied by a message on the multifunction screen.
See also:
"Motorway" function
System for indicating a change of lane
on a motorway.
Move the lighting stalk briefl y upwards
or downwards, without going
beyond the resistance point; the direction
indicators will fl ash 3 time ...
Diesel injection equipment
Protective cover for HDi 138 engines:
Remove the protective cover by first unclipping at 3, then 1 and 4.
Unclip at 2 by pulling towards you, then lift up.
To refit the protective cover, firstly ...
Rear lamps (saloon)
Rear lamp unit
Identify the failed bulb.
Bulbs:
A S top-lamps and sidelamps:
P 21 W / 5 W
B S idelamp: R 5 W
C R eversing lamp: H 21 W
D Foglamp: H 21 W
E Direction indicator: P 21 W
Rear ...
