Storage drawer

The storage drawer is located under the front passenger's seat.
Opening

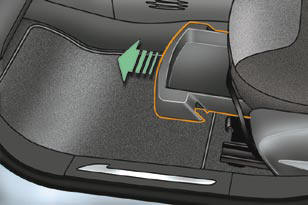

Raise the front of the drawer and pull it.
Removal
- Bring the drawer to the end of its travel.
- Press the ends of the slides.
- Raise the drawer and pull it fully.
Refitting
- Engage the drawer in its slides.
- At the end of its travel, press on the top of the drawer to secure it.
Do not place heavy objects in the drawer.
