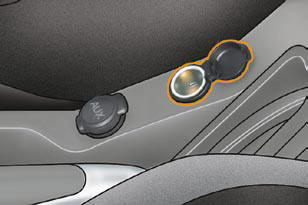

12 V accessories socket
To connect a 12 V accessory (max power: 120 Watts), remove the cover and connect a suitable adaptor.
