Fuses under the dashboard

Citroen C4 / Citroen C4 Owner's Manual / Practical  advice / Fuses under the dashboard

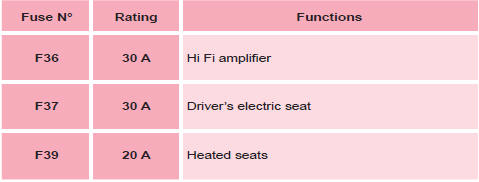

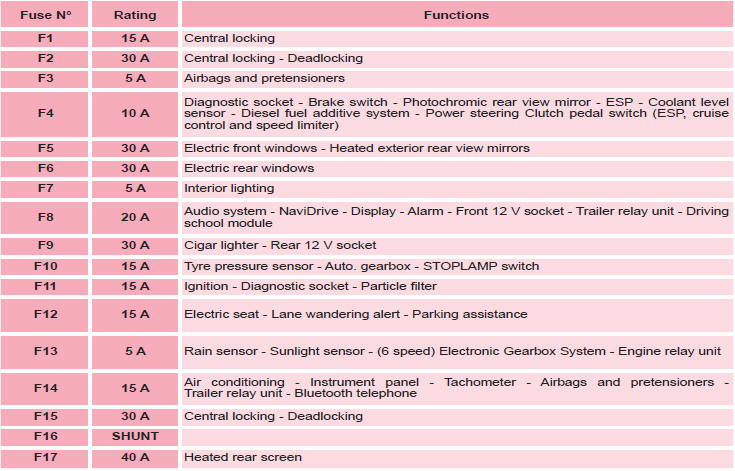

Fuse box

Fuse box

Fuse box

Fuse box

To access the engine compartment fusebox, detach and remove the cover.

After any repair, reclose the cover very carefully. If the cover is not correctly

After any repair, reclose the cover very carefully. If the cover is not correctly positioned or not properly closed, your vehicle could be subject to serious malfunctions. For the same reason, take the utmost care not to spill any liquids.
