Diesel engines HDi 110 - HDi 138 (with particle filter)

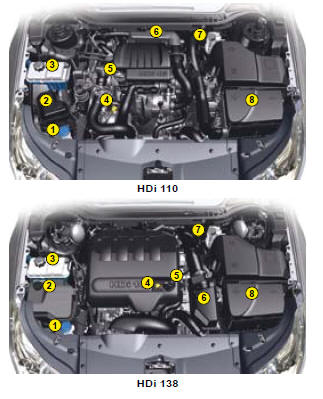

1. Screen wash and headlamp wash reservoir.
2. Power steering fluid or power steering and suspension fluid reservoir.
3. Engine coolant reservoir.
4. Engine oil gauge.
5. Engine oil topping-up.
6. Air filter.
7. Brake fluid reservoir.
8. Battery.
The diesel fuel circuit being under high pressure:
ANY INTERV ENTION ON THE CIRCUIT IS PROHIBITED.
HDi engines are the result of advanced technology.
Any intervention requires special qualifications which only a CITROËN dealer can
guarantee.
Vehicles with HDi 138 engines may be fitted with metallic suspension. In this case, the power steering oil reservoir is different.
See also:
Diesel engines HDi 173 - V6 HDi 208 (with particle filter)
1. Screen wash and headlamp wash reservoir.
2. Power steering and suspension fluid reservoir.
3. Engine coolant reservoir.
4. Engine oil gauge.
5. Engine oil topping-up.
6. Air filter.
7. Brak ...
Rear lamps (tourer)
Rear lamp on wing
Remove the lateral boot trim A.
To do so :
1 Pull it towards towards the inside of the boot.
2 Pull it upwards.
3 Disconnect the connector B.
4 Unscrew the fixing screw C.
...
