Diesel engines HDi 173 - V6 HDi 208 (with particle filter)

Citroën C5 / Citroen C5 Owner's Manual / Maintenance / Diesel engines HDi 173 - V6 HDi 208 (with particle filter)

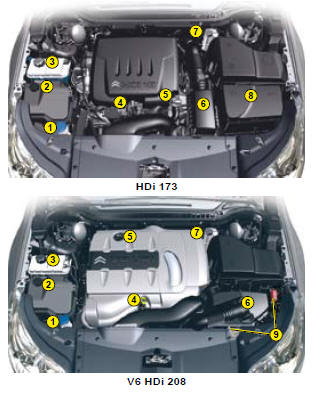

1. Screen wash and headlamp wash reservoir.

1. Screen wash and headlamp wash reservoir.
2. Power steering and suspension fluid reservoir.
3. Engine coolant reservoir.
4. Engine oil gauge.
5. Engine oil topping-up.
6. Air filter.
7. Brake fluid reservoir.
8. Battery.
9. “+” and “-” terminals for starting with an assisting battery.

The diesel fuel circuit being under high pressure:

ANY INTERV ENTION ON THE CIRCUIT IS PROHIBITED.

HDi engines are the result of advanced technology.
Any intervention requires special qualifications which only a CITROËN dealer can guarantee.
