Controls

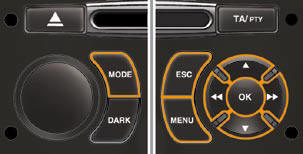

From the control panel of your Audio system, you can:
- press the "MENU" button to gain access to the general menu ,
- press the " " or " " buttons to scroll through the items on the screen,
- press the "MODE" button to change the permanent application (date, audio source...),
- press the " " or " " buttons to change a setting value,
- press the "OK" button to confi rm, or
- press the "ESC" button to abandon the operation in progress.
See also:
Vehicle configuration
Once the "Vehicle Confi guration" menu
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer
to the "Visibility" ...
Diesel engines HDi 110 - HDi 138 (with particle filter)
1. Screen wash and headlamp wash reservoir.
2. Power steering fluid or power steering and suspension fluid reservoir.
3. Engine coolant reservoir.
4. Engine oil gauge.
5. Engine oil topping-up.
...
Rear lamps (saloon)
Rear lamp unit
Identify the failed bulb.
Bulbs:
A S top-lamps and sidelamps:
P 21 W / 5 W
B S idelamp: R 5 W
C R eversing lamp: H 21 W
D Foglamp: H 21 W
E Direction indicator: P 21 W
Rear ...
