Manual adjustments

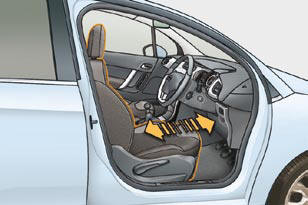

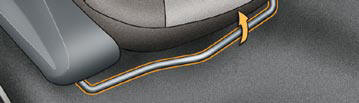

Forwards-backwards adjustment
Raise the control and slide the seat forwards or backwards.

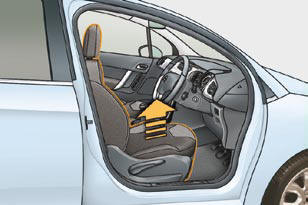

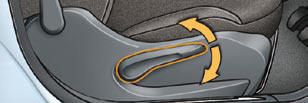

Driver's or passenger's seat height adjustment
Pull the control upwards to raise or push it downwards to lower, as many times as necessary, to obtain the position required.

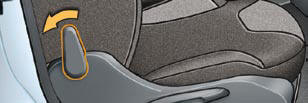

Seat back angle adjustment
Push the control rearwards.
