Rear head restraints
These have a high position (comfort) and a low position (rear visibility).
They can also be removed.

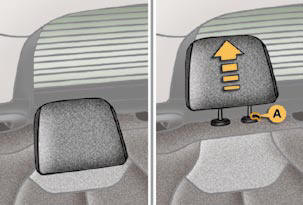

To remove a head restraint:
- release the backrest using control 1 ,
- tilt the backrest 2 slightly forwards,
- pull the head restraint upwards to the stop,
- then, press the lug A .
Never drive with the head restraints removed; they must be in place and correctly adjusted.
