"Motorway" function
System for indicating a change of lane on a motorway.
Move the lighting stalk briefl y upwards or downwards, without going beyond the resistance point; the direction indicators will fl ash 3 times.
This function can be used at any speed, but it is particularly useful when changing lane on high-speed roads.

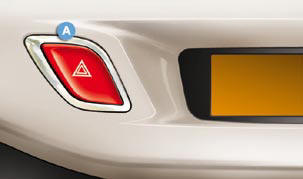

Hazard warning lamps A visual warning by means of the direction indicators to alert other road users to a vehicle breakdown, towing or accident.
Press the button A , the direction indicators fl ash.
They can operate with the ignition off.
See also:
Opening
Fuel tank
A. Opening the fuel filler flap.
To open the fuel fi ller fl ap, pull at its notched edge. There is a fuel label
on the inside of the fl ap.
Locking filler cap
Turn the key a quarter ...
Rear lamps (tourer)
Rear lamp on wing
Remove the lateral boot trim A.
To do so :
1 Pull it towards towards the inside of the boot.
2 Pull it upwards.
3 Disconnect the connector B.
4 Unscrew the fixing screw C.
...
Access to the kit
The kit is mounted in the boot under the
fl oor.
This repair kit is available from
CITROËN dealers.
It is designed to repair holes of a
maximum diameter of 6 mm, only
where the puncture i ...
