Emergency control
System which locks or unlocks the doors mechanically in the event of a malfunction of the battery or of the central locking.
Locking the driver's door
Insert the key in the lock, then turn it to the right.
Unlocking the driver's door
Insert the key in the lock, then turn it to the left.

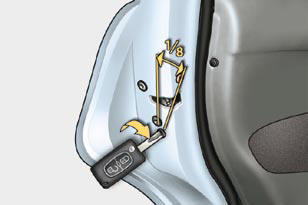

Locking the front and rear passenger doors
Insert the key in the lock, located on the edge of the door, then turn it one eighth of a turn .
Unlocking the front and rear passenger doors
Pull the interior door opening control.
