Manual guide-me-home lighting
Temporarily keeping the dipped headlamps on after the vehicle's ignition has been switched off makes the driver's exit easier when the light is poor.
Switching on

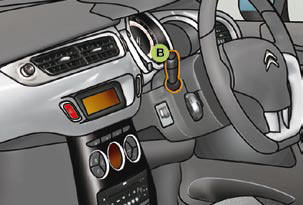

- With the ignition off, "fl ash" the headlamps using the lighting stalk B .
- A second "headlamp fl ash" switches the function off again.
Switching off
The manual guide-me-home lighting switches off automatically after a set time.
