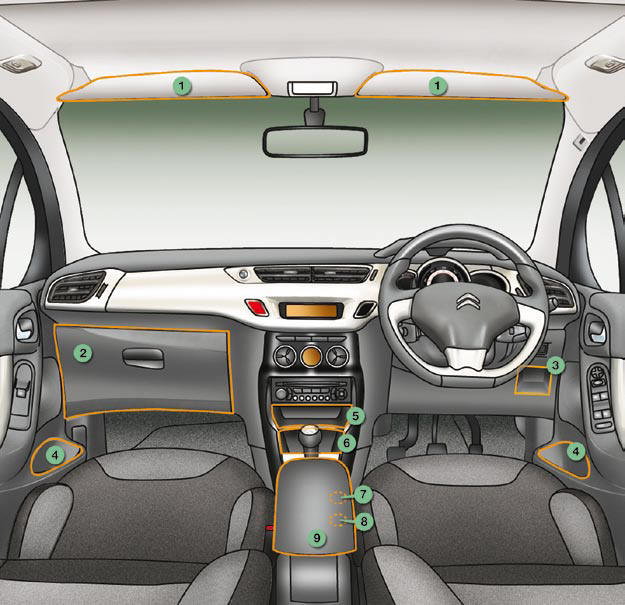

Interior fittings
1. Sun visor
2. Glove box
(see details on following page)
3. Storage compartments
4. Door tray
5. Upper storage compartment
6. Lower storage compartment with
non-slip mat
7. USB port /Jack
(see details on the following page)
or
Coin holder
8. 12 V accessories socket
(see details on following page)
9. Centre armrest with storage
(see details on following page)
or
Cup/bottle holder
