Installing child seats attached using the seat belt

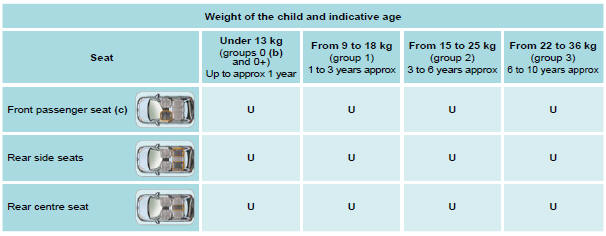

In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved (a) in accordance with the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat that can be installed in all vehicles
using a seat belt.
(b ) Group 0: from birth to 10 kg. Shells seats and baby carriers cannot be
installed in the front passenger seat.
(c ) Consult the legislation in force in your country before installing your
child on this seat.
U : Seat suitable for the installation of a child seat secured using a seat belt
and universally approved, "rearwards-facing"
and/or "forwards-facing".
