Deactivation
Only the passenger's front airbag can be deactivated:

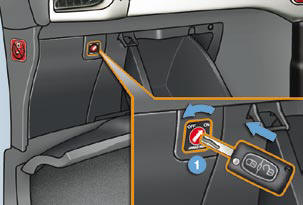

- with the ignition off , insert the key in the passenger airbag deactivation switch 1 ,
- turn it to the "OFF" position,
- then, remove the key keeping the switch in this position.
This warning lamp comes on in the instrument panel when the ignition is on and until the airbag is re-activated.
To guarantee the safety of your child, it is imperative that the passenger's front airbag is disarmed when you install a "rear facing" child seat on the front passenger seat.
Otherwise, the child would risk being seriously injured or killed if the airbag were triggered.
See also:
Monitoring
Instrument panel
A. Fuel gauge and low fuel warning lamp.
B. Cruise control/speed limiter information.
C. Coolant temperature.
D. Speed indicator.
E. Instrument panel.
F. Mileage recorder.
G. ...
Rear lamps (tourer)
Rear lamp on wing
Remove the lateral boot trim A.
To do so :
1 Pull it towards towards the inside of the boot.
2 Pull it upwards.
3 Disconnect the connector B.
4 Unscrew the fixing screw C.
...
Front side reading lamps
With the ignition on, the fi rst press of
the corresponding switch switches
on the reading lamp concerned in
permanent lighting mode.
Following a second press, it comes on:
- when the vehicle is ...
