Access to the spare wheel

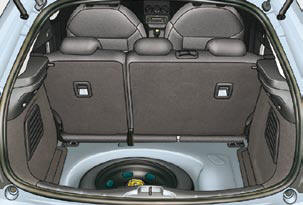

The spare wheel is installed in the boot under the fl oor.
According to country, the spare wheel may be steel or of the "space saver" type.
To gain access to it, refer to the paragraph "Access to the tools" on the previous page.
Fitting the steel or "spacesaver" type spare wheel
If your vehicle is fi tted with alloy wheels, it is normal to notice, when tightening the bolts on fi tting, that the washers do not come into contact with the steel or "space-saver" type spare wheel. The wheel is secured by the conical contact of each bolt.
See also:
Brakes
If the parking brake is released, the lighting of this warning lamp along with
the STOP warning lamp indicates an insufficient level of brake fluid or a malfunction
of the braking distribution ...
Front lamps
1. Direction indicators
(PY21W amber).
2. Sidelamps (W5W).
3. Main beam headlamps (H1-55W).
4. Dipped beam headlamps
(H7-55W).
5. Front foglamps (PSX24W).
Changing direction indicator bulbs
...
Rear lamps
(3-door model)
Identify the failed bulb.
Bulbs:
- Direction indicator: P21 W.
- Reversing lamp: P21 W.
- Stop lamps and sidelamps: P21/5.
Removal
To have access to the nut B, detach the boot ...
