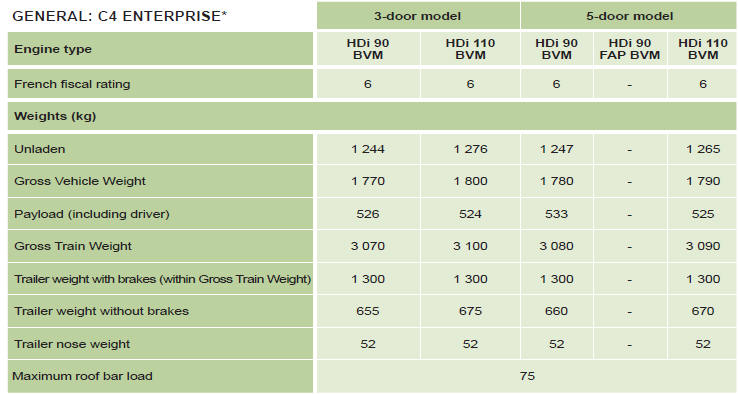

General: c4 enterprise
* Applicable to all countries, except France and Overseas France. For France and DOM-TOM countries, refer to the table on the "Technical Specifications - Weights" page.
See also:
Diesel engines
1. Screenwash reservoir.
2. Coolant reservoir.
3. Air fi lter * .
4. Brake fl uid reservoir.
5. Battery.
6. Fuse box.
7. Engine oil dipstick.
8. Engine oil fi ller cap.
9. Repriming pump * . ...
Electric control panel
The heating/ventilation or air conditioning
systems can only operate with the
engine running.
1. Temperature adjustment
Turn the dial from blue
(cold) to red (hot) to adjust
the temperature ...
Bonnet release
Bonnet
This operation should only be performed while the vehicle is stationary.
Open the door.
To unlock, pull release lever A.
Lift up lever B, then raise the bonnet.
Note: The panel may be ...
