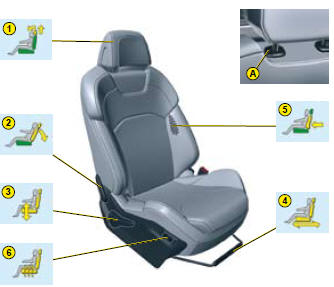

Manual adjustments
1. Adjustments to the height and angle of the head restraint
To raise it, pull upwards.
To lower it, press on the control A to unlock it, and simultaneously on the head restraint itself. The adjustment is correct when the top edge of the head restraint is at the same height as the top of the head. It is also tiltadjustable.
To raise it, press control A to unlock it, then pull it upwards
2. Adjustment of the backrest angle
Use the control to adjust the backrest angle.
It is possible to recline the backrest angle to 45° by pushing it until it locks.
3. Adjustment of the seat height and angle
Raise or lower the control the number of times required to obtain the desired position.
4. Longitudinal adjustment of seat
Lift the control bar and adjust to the desired position.
5. Adjustment of lumbar support
Turn the control and adjust to the desired position.
6. Heated seat controls
Note: The heated seats only operate when the engine is running.
0: Off.
1: Gentle.
2: Medium.
3: Strong.
For your safety, do not drive with the head restraints removed; these must be in place and correctly adjusted.
