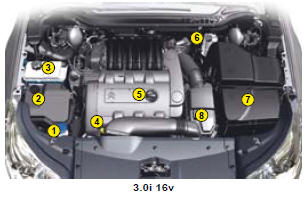

Petrol engines 3.0i V6

1. Screen wash and headlamp wash reservoir.
2. Power steering and suspension fluid reservoir.
3. Engine coolant reservoir.
4. Engine oil gauge.
5. Engine oil topping-up.
6. Brake fluid reservoir.
7. Battery.
8. Air filter.
