Manual guide-me-home lighting
Temporarily keeping the dipped headlamps on after the vehicle's ignition has been switched off makes the driver's exit easier when the light is poor.
Switching on

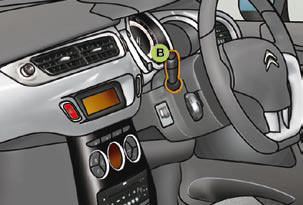

- With the ignition off, "fl ash" the headlamps using the lighting stalk B .
- A second "headlamp fl ash" switches the function off again.
Switching off
The manual guide-me-home lighting switches off automatically after a set time.
See also:
Starting using another battery
Connect the red cable to the positive
terminal (+) of the fl at battery A ,
then to the positive terminal (+) of
the slave battery B .
Connect one end of the green or black
cable to ...
Monitoring
Instrument panel
A. Fuel gauge and low fuel warning lamp.
B. Cruise control/speed limiter information.
C. Coolant temperature.
D. Speed indicator.
E. Instrument panel.
F. Mileage recorder.
G. ...
Diesel engines
They give access for checking the levels of the various fluids, the replacement
of certain items and priming the fuel system.
1. Power steering reservoir.
2. Screen and headlamp wash reservoir.
3 ...
