Front seat belts
The front seat belts are fi tted with a pretensioning and force limiting system.
This system improves safety in the front seats in the event of a front impact.
Depending on the severity of the impact, the pretensioning system instantly tightens the seat belts against the body of the occupants.
The pretensioning seat belts are active when the ignition is on.
The force limiter reduces the pressure of the seat belt on the chest of the occupant, so increasing their protection.

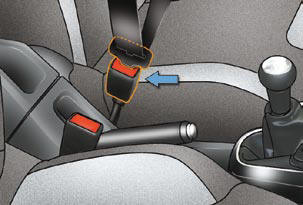

Fastening
- Pull the strap, then insert the tongue in the buckle.
- Check that the seat belt is fastened correctly by pulling the strap.
Unfastening
- Press the red button on the buckle.
- Guide the seat belt as it is reeled in.
Seat belt not fastened/ unfastened warning lamp
When the ignition is switched on, this warning lamp comes on in the instrument panel, if the driver and/or the front passenger has not fastened their seat belt.
From approximately 12 mph (20 km/h) this warning lamp fl ashes for two minutes accompanied by an audible signal of increasing volume. Once these two minutes have elapsed, this warning lamp remains on until the driver and/or the front passenger fastens their seat belt.
See also:
Steering wheel controls
The controls of this system are grouped
together on stalk A .
1. Speed limiter mode selection thumb
wheel
2. Value decrease button
3. Value increase button
4. Speed limiter on/off button ...
Diesel engines HDi 173 - V6 HDi 208 (with particle filter)
1. Screen wash and headlamp wash reservoir.
2. Power steering and suspension fluid reservoir.
3. Engine coolant reservoir.
4. Engine oil gauge.
5. Engine oil topping-up.
6. Air filter.
7. Brak ...
Glove box
To open the glove box, raise the
handle.
It houses the front passenger airbag deactivation
switch A .
It gives access to the dashboard fusebox
(see the "Practical information - §
Changing ...
