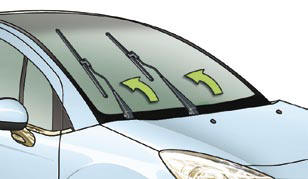

Special position of the windscreen wipers
In the minute following switching off of the ignition, any action on the stalk positions the wipers vertically.
This action enables you to position the wiper blades for winter parking, cleaning or replacement without damaging the bonnet.
To park the wipers after this has been done, switch on the ignition and operate the stalk.
For optimum and lasting wiping of the "fl at-blade" wiper blades, it is advisable to:
- handle them with care,
- clean them regularly using
soapy water,
- change them approximately
every 6 months,
- avoid using them to retain
cardboard on the windscreen.
See also:
Display C
Presentation:
1 - Time.
2 - Ambient temperature
3 - Date and Display zone
If the outside temperature is between +3 °C and -3 °C, the temperature display
flashes (risk of ice).
Note: the outsi ...
Diesel engines HDi 173 - V6 HDi 208 (with particle filter)
1. Screen wash and headlamp wash reservoir.
2. Power steering and suspension fluid reservoir.
3. Engine coolant reservoir.
4. Engine oil gauge.
5. Engine oil topping-up.
6. Air filter.
7. Brak ...
Manual controls
The wiper commands are issued directly
by the driver by means of the stalk A
and the ring B .
Windscreen wipers
A. wiping speed selection stalk:
fast (heavy rain),
normal (moderate rain),
in ...
