Installing a child seat using a three point seat belt

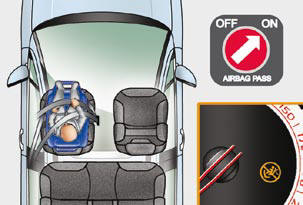

"Rearwards-facing"
When a "rearwards-facing" child seat is installed on the front passenger seat , it is essential that the passenger airbag is deactivated. Otherwise, the child would risk being seriously injured or killed if the airbag were to infl ate.

* The rules for transporting children are specifi c to each country. Refer to the current legislation in your country.

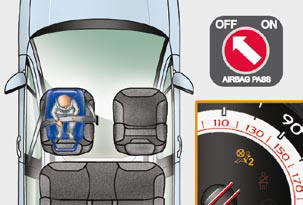

"Forwards-facing"
When a "forwards-facing" child seat is installed on the front passenger seat , adjust the vehicle's seat to the intermediate longitudinal position with the seat back upright and leave the passenger airbag activated.

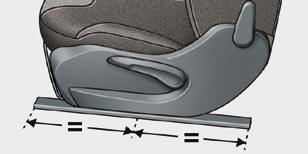

Intermediate longitudinal position

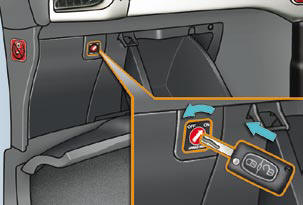

Passenger air bag OFF
