Interior lighting

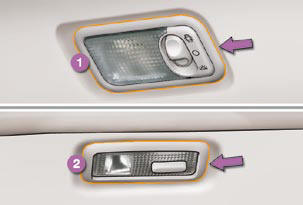

Interior lamp (1/W5W)
Unclip the cover of the interior lamp 1 with a thin screwdriver, close to the button, to access the faulty bulb.
Side reading lamps (2/W5W)
Unclip the cover of the reading lamp 2 with a small screwdriver at the switch end for access to the faulty bulb.

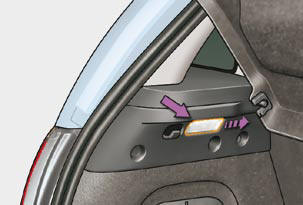

Boot lamp (W5W)
Unclip the unit by pushing it from the rear.
Sill lamps (W5W)
Unclip the lamp for access to the bulb.
