Engine compartment fusebox

Citroen C3 / Citroen C3 Owner's Manual / Practical information / Changing a fuse / Engine compartment fusebox

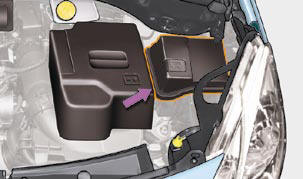

The fusebox is placed in the engine compartment near the battery (left-hand side).

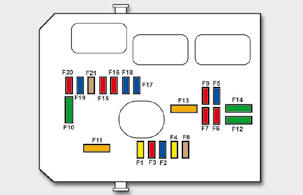

Access to the fuses

Access to the fuses

  • Unclip the cover.
  • Change the fuse (see corresponding paragraph).
  • When you have fi nished, close the cover carefully to ensure the sealing of the fuse box.

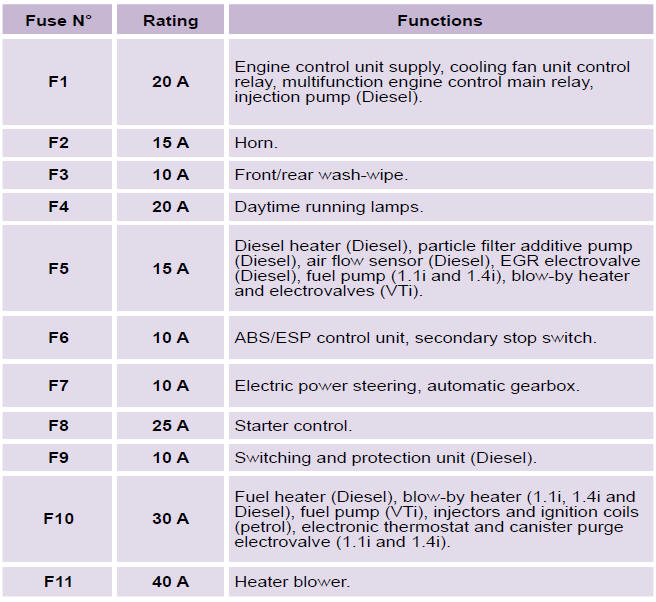

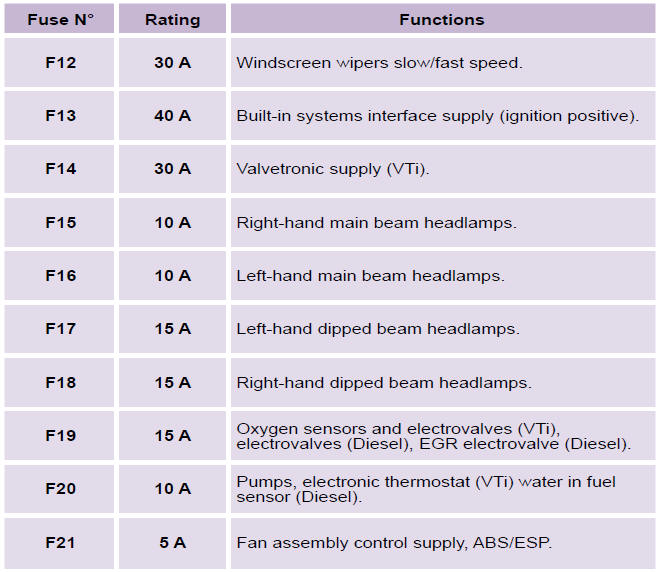

Fuse table

Fuse table

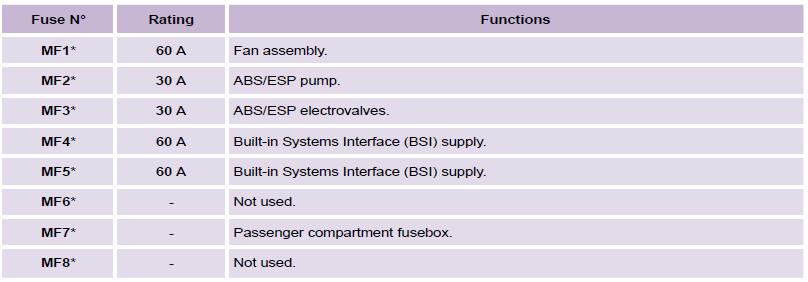

Table of maxi-fuses

Table of maxi-fuses

* The maxi-fuses provide additional protection for the electrical systems.

* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a CITROËN dealer.
