Instrument panel

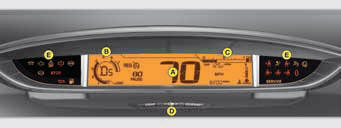

Instrument panel

A. Speedometer.
B. Rev counter.
C. Fuel gauge.
D. Lighting rheostat.
E. Warning lamp.

Warning lamps

Ignition on, the orange and red alert warning lamps come on. With the engine running, these same warning lamps should go out. If a warning lamp stays on, refer to the relevant page.

Controls

Controls

A. Deactivation of the ESP/ASR system.

B. Deactivation of the visual and audible parking assistance.

C. Deactivation of the lane departure warning system.

D. Deactivation of the alarm volumetric sensors.
