Instrument panel

Citroen C4 / Citroen C4 Owner's Manual / Dashboard / Instrument panel

On opening the driver’s door or unlocking with the remote control, for approximately 30 seconds the instrument panel is activated, displaying the mileage recorders and if applicable, the maintenance indicator spanner.

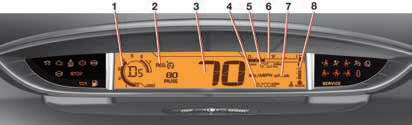

Central display

1 Rev counter
2 Cruise control or speed limiter settings
3 Speedometer
4 Maintenance indicator on switching on, then mileage recorder
5 Trip mileage recorder
6 Fuel gauge
7 Engine oil level check
8 Coolant temperature

Display of warning lamps

Display of warning lamps

Trip mileage recorder reset button

Display lighting rheostat

Display of alerts and Status of functions

Display of warning lamps
