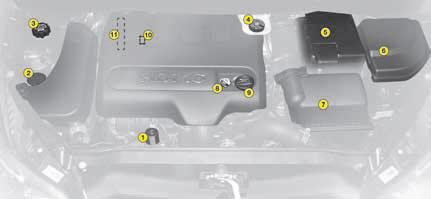

Petrol engines
They give access for checking the levels of the various fluids and the replacement of certain items.
1. Power steering reservoir.
2. Screen and headlamp wash reservoir.
3. Engine coolant.
4. Brake fluid reservoir.
5. Battery.
6. Fusebox.
7. Air filter*.
8. Engine oil dipstick.
9. Topping up engine oil.
* Depending on engine.
