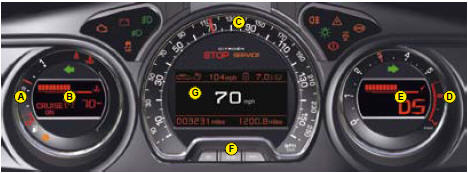

Instrument panel
A Fuel gauge
B Indicator:
Coolant temperature
Cruise control/Speed limiter information
C Speed indicator
D Rev counter
E Indicator:
Engine oil temperature
Gear selector position and gear engaged (Automatic gearbox)
F Controls:
Lighting rheostat
Resetting to zero of trip mileage computer and maintenance indicator
G Instrument panel screen indicating:
Depending on the page selected with the left-hand control knob on the steering wheel:
Digital speed
Trip computer
Navigation (guidance) information
Display of message alerts
Engine oil level check
Maintenance indicator
Permanently:
Trip mileage recorder
Total mileage recorder
