Diesel engines

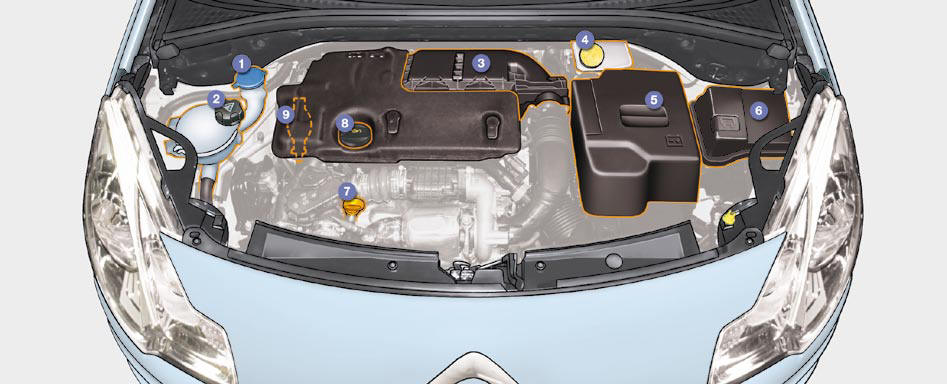

1. Screenwash reservoir.
2. Coolant reservoir.
3. Air fi lter * .
4. Brake fl uid reservoir.
5. Battery.
6. Fuse box.
7. Engine oil dipstick.
8. Engine oil fi ller cap.
9. Repriming pump * .
See also:
Petrol - diesel manual or automatic gearbox instrument panels
Panel grouping together the vehicle operation indication dials and warning
lamps.
Depending on the version, the instrument panel may have permanent back-lighting. ...
Dials
1. Rev counter.
Indicates the speed of rotation of the
engine (x 1 000 rpm).
2. Vehicle speed.
Indicates the current speed of the
moving vehicle (km/h or mph).
3. Fuel level.
Indicates the quan ...
Fuses on the battery
Fuses on the battery
To access the fusebox on the battery, detach and remove the cover.
After a repair, take care to reclose the cover.
If the cover is not correctly positioned or not properly ...
