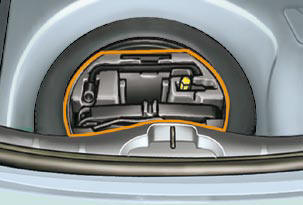

Putting the wheel back in place
- Put the wheel back in its housing.

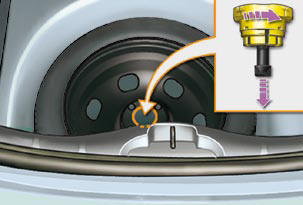

- Unscrew the yellow central bolt by a few turns then put it in place in the centre of the wheel.
- Tighten fully until the central bolt clicks to retain the wheel correctly.
- Put the box back in place in the centre of the wheel and clip it.
- Put the polystyrene storage box back in place.
- Refi t the boot fl oor carpet by lightly folding it in two (refer to the section "Fittings - § Storage box").
On vehicles equipped with a "space-saver" type spare wheel, the punctured wheel cannot be stowed in place of the "spacesaver" wheel.
