Courtesy lamps
Selection and control of the various passenger compartment lamps.

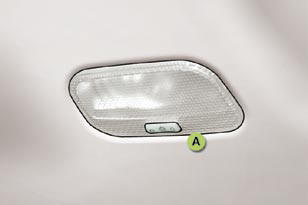

Version without Zenith windscreen
A. Central courtesy lamp

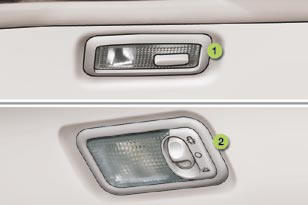

Version with Zenith windscreen
1. Rear side reading lamps
2. Rear courtesy lamp
