Mats
Removable component which protects the carpet against exterior dirt.
Fitting
When fi tting the mat for the fi rst time, on the driver's side, use only the fi xings provided in the wallet attached.
The other mats are simply placed on the carpet.
Removal

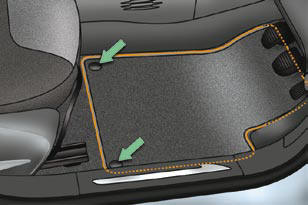

To remove the mat on the driver's side:
move the seat as far back as possible,
unclip the fi xings,
remove the mat.
Refitting
To refi t the mat on the driver's side:
position the mat correctly,
refi t the fi xings by pressing,
check that the mat is secured correctly.
To avoid any risk of jamming of the pedals:
- only use mats which are
suited to the fi xings already
present in the vehicle; it is
imperative that these are
used,
- never fi t one mat on top of
another.
