Fuses

Citroën C5 / Citroen C5 Owner's Manual / Maintenance / Fuses

Dashboard

FUSEBOXES

The 2 fuseboxes are located below the dashboard and under the bonnet.

Replacing a fuse

Before replacing a fuse, you should ascertain the cause of the fault and have it remedied. The numbers of the fuses are indicated on the fusebox.

Replace the fuse that has blown with one of the same rating (same colour).

Use the special pliers 1 placed on the flap close to the fuseboxes.

The flap also has spare fuses available.

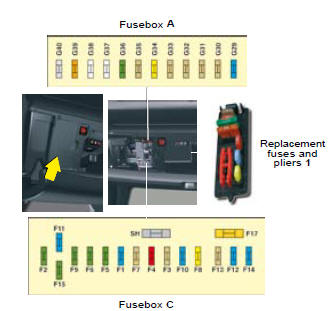

Dashboard fuses

Dashboard fuses

To access the fuses under the dashboard, open the glovebox and then detach the stowage cover.

Table of fuses

Table of fuses

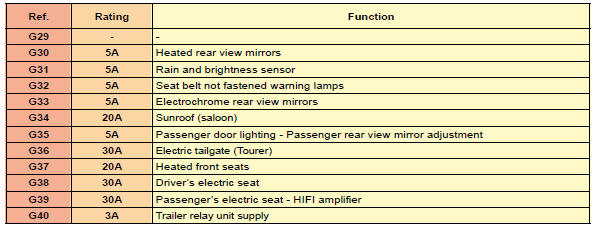

Fusebox A

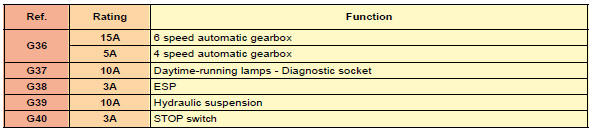

Fusebox B

Fusebox B

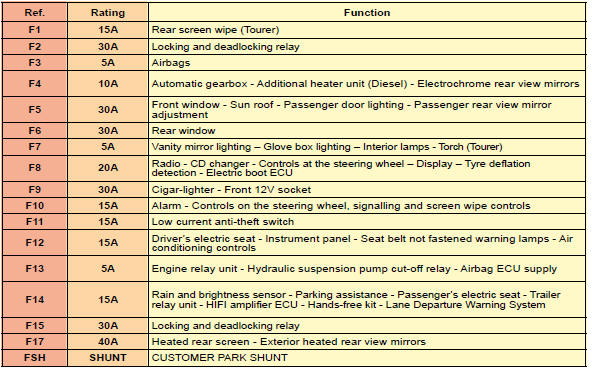

Fusebox C

Fusebox C

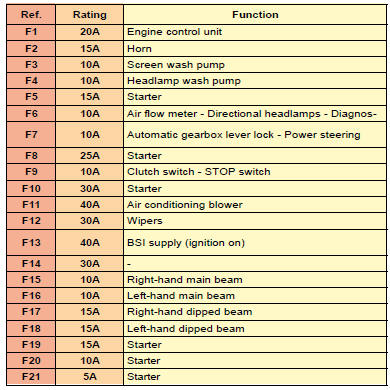

Under the bonnet

Under the bonnet

To access the fusebox under the bonnet, undo each screw by a 1/4 turn.

To access the fusebox under the bonnet, undo each screw by a 1/4 turn.

After a repair, take care to reclose the cover.

Any repairs on the MAXI fuses (that give additional protection), located in

Any repairs on the MAXI fuses (that give additional protection), located in the fuseboxes, must be left to a CITROËN dealer.

Fuses on the battery
