With the engine off, programmable heating preheats the coolant circuit in order

With the engine off, programmable heating preheats the coolant circuit in order to optimise the engine operating temperature prior to starting.

The programmable heating system can be started immediately or delayed thanks to its programming function.

With the engine idle or the vehicle stationary, it is normal to hear a high-pitched whistling noise and to notice some smoke / emissions.

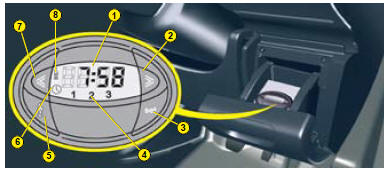

Digital programmer

The heating systems programmer is located on the right-hand side of the dashboard.

1. Time or remaining functioning time.
2. Increase (time).
3. Select programme.
4. Programme number selected.
5. Immediate start-up of heating.
6. Time adjustment and reading warning lamp.
7. Reduce (time).
8. Heating mode warning lamp.

9 Programmable heating system warning lamp.

9 Programmable heating system warning lamp.

LED lit : Activated.

LED off : Deactivated.

Immediate start-up

Press button 5.

The screen displays a default duration of 60 minutes, you are advised to adjust this to a duration of 30 minutes maximum (see section adjusting the operating duration ).

The warning lamp 8 lights up and remains lit for the whole duration of the systems operation. The duration of the systems operation disappears after 10 seconds.

Stopping the heating

Press button 5.

The warning lamp 8 and the screen go out.

Delayed start-up

Delayed start-up

Note : Before programming the delayed start-up of the heating, you must ensure that the clock is set to the correct time.

Setting the time

Hold button 3 down and press button 2 or button 7. Release button 3, the time is displayed and symbol 6 flashes.

Use the two adjustment buttons 2 (to go forward) or 7 (to go back) until the correct time is displayed.

Holding these buttons down will make the numbers displayed scroll more quickly.

Reading the time

Reading the time

Press button 2 or button 7 to display the time.

When the heating mode is activated, the remaining operating time is displayed in place of the time.

Programming the start-up time

Start-up may be programmed between 1 minute and 24 hours in advance.

You can store up to 3 different startup times, but programme only 1 delayed start-up time.

Factory settings A :

Time 1 : 06:00.
Time 2 : 16:00.
Time 3 : 22:00.

Note : The factory settings are replaced once you adjust them.

The programmed times are stored until they are re-programmed.

Press button 3 then buttons 2 or 7 in the next 10 seconds, until the desired

Press button 3 then buttons 2 or 7 in the next 10 seconds, until the desired start-up time is displayed.

Note : if you wish to recall the other stored times, press several times on button 3 in the next 10 seconds until the desired programme number is displayed.

Cancelling the programmed time

To cancel the programmed start-up time, press briefly on button 3.

Note : In the event of a battery failure, the factory settings are restored.

Selection and activation of a programmed time

Selection and activation of a programmed time

Press button 3 until the programme number corresponding to the required programmed time is displayed.

The chosen pre-selected time is automatically activated after 10 seconds if no other buttons have been pressed.

To confirm that the mode is activated, symbols 4 and 8 flash until the heating starts up.

When the heating starts up, the warning lamp 9 lights up on the dashboard and the programmer screen.

Adjusting the operating duration

Adjusting the operating duration

Press button 3 and hold it down.

Press button 2 or 7 at the same time. Release button 3. The time and symbol 6 are displayed.

Press again on button 3 and hold it down. Press button 2 or 7 at the same time. Release button 3. The operating duration and symbol 8 is displayed.

Adjust the operating duration with button 2 or 7.

Note : The operating duration is memorised when the time indicated disappears or by pressing button 3.

Adjusting the remaining operating duration

When heating mode is activated, the remaining operating time can be modified within the range of 10 to 60 minutes using buttons 2 or 7.

Note : The pre-selected start-up time can be modified or cancelled by following the instructions previously given above.

In the event of a battery disconnection, the programmer must be re-set (hours, minutes etc.)

Always switch off the additional heating when filling up with fuel, to prevent

Always switch off the additional heating when filling up with fuel, to prevent any risk of fire or explosion.
To avoid any risk of intoxication or asphyxiation, the additional heating must not be used, even for short periods, in an enclosed area such as a garage or workshop not equipped with a system for the extraction of exhaust gases.
Do not park the vehicle over inflammable materials (e.g. dry grass, dead leaves or paper) as this could present a fire risk.
The programmable heating system is supplied by the vehicles fuel tank. Before use, ensure that the remaining fuel level is sufficient. If you are using the reserve fuel tank, we strongly advise you not to use the programmable heating system.
