Child restraints

Citroën C5 / Citroen C5 Owner's Manual / Comfort / Child restraints

CHILD SEATS SECURED BY MEANS OF THE VEHICLE SEAT BELT

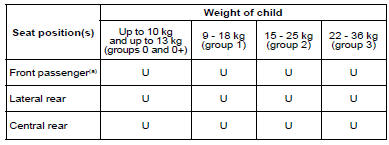

In conformity with Directive 2005/40, the table tells you to what extent each of the seat positions in your vehicle may take a child seat that is secured by means of the vehicle seat belt and approved as Universal depending on the weight of the child.

Consult User Precautions, chapter on Child Safety at the end of this handbook, in order to ensure that you are installing your child in conditions of maximum safety.

U : S eat position suitable for installation of universally approved rear-facing

U : S eat position suitable for installation of universally approved rear-facing and/or front-facing child seat.

(a) : Consult the current legislation for your country before driving with your child in this seat.

In the front passenger's seat position, it is imperative to deactivate the front passenger's airbag if you are installing a rear-facing child seat there. Otherwise the child risks being killed or seriously injured should the airbag deploy.
Take care to comply with the fitting instructions given in the child seat manufacturers installation guide.

ISOFIX child seats

ISOFIX child seats

ISOFIX anchoring points and the ISOFIX fastening system

Your vehicle is ISOFIX approved in conformance with European law ECE 14-06. The lateral rear seats and the front passenger seat are fitted with regulation ISOFIX anchoring points.

Incorrect installation of a child seat in a vehicle compromises protection of the child in the event of a collision. The ISOFIX system enables you to minimise the risks posed by incorrect fitting.

The ISOFIX fastening system gives you a convenient, strong and reliable fitting for a child seat in your vehicle.

The ISOFIX fastening system

The ISOFIX fastening system

Front (saloon and Tourer)

The ISOFIX system is made up of 3 rings for the front passenger seat:

2 rings A located between the backrest and the seat cushion, with the ISOFIX logo.

A third ring B fixed in the lower section of the rear of the backrest.

Rear (saloon)

The ISOFIX system is made up of 3 rings for each side rear seat :

2 lower rings C located between the backrest and the seat cushion, with the ISOFIX logo.

One top ring D fixed on the rear shelf, concealed under a flap with the TOP TETHER

One top ring D fixed on the rear shelf, concealed under a flap with the TOP TETHER logo behind the head restraint.

Rear (Tourer)

The ISOFIX system is made up of 3 rings for each side rear seat :

2 lower rings C located between the backrest and the seat cushion.

They are approximately 28 cm apart and have the ISOFIX logo.

One top ring E, concealed under a flap with the TOP TETHER logo.

The ISOFIX child seat fastening system

ISOFIX child seats have 2 latches which are easy to anchor on the 2 lower rings A or C.

Some ISOFIX child seats also have an additional belt which is attached to the upper ISOFIX ring D (saloon) or E (Tourer) of the side rear seats.

To attach the top belt, raise the head restraint of the vehicle seat, then pass the buckle between the rods. Next fix the buckle on the top belt D or E and tension the top belt.

This fixing system is intended for children weighing up to 18 kg.

The ISOFIX child seats which can be installed in your vehicle are indicated in the table on the next page.

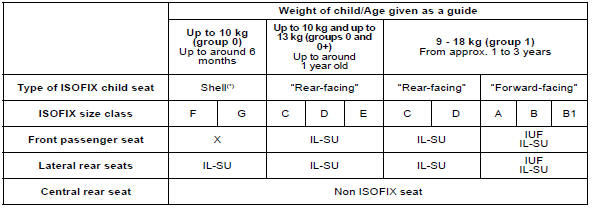

Table SUMMARISING THE installation OF ISOFIX CHILD SEATS

In conformance with European law (ECE 14-06), this table shows you the possibilities for the installation of ISOFIX child seats in seats fitted with ISOFIX anchoring points.

For ISOFIX universal and semi-universal child seats, the ISOFIX size class, defined by a letter from A to G, is shown on the child seat to the right of the ISOFIX logo.

IUF: Seat position suitable for installation of an ISOFIX universal child seat.

IUF: Seat position suitable for installation of an ISOFIX universal child seat. ISOFIX forward-facing child seats equipped with a top belt for attaching on the top ring in the vehicle's ISOFIX seat positions.

IL-SU: Seat position suitable for installation of an ISOFIX semi-universal child seat. ISOFIX forward-facing child seats equipped with a bar, ISOFIX rear-facing child seats, or ISOFIX shell seats equipped with either a top belt or a bar.

X: Seat not suitable for installation of an ISOFIX seat of the size class indicated

(*): The ISOFIX shell, fixed to the lower rings of an ISOFIX seat, takes up 2 rear seats

RECOMMENDED ISOFIX CHILD SEAT

ISOFIX child seat recommended

ISOFIX child seat recommended

The ISOFIX child seat recommended for your vehicle is the RÖMER Duo Plus ISOFIX. It is sold by the CITROËN network.

It is equipped with a top belt and so is approved as an ISOFIX universal child seat, size class B1. It is essential to use the top belt.

This ISOFIX child seat can also be installed in seats not fitted with ISOFIX anchoring points. In this case, the child seat must be secured by means of the vehicle seat belt.

In the front passenger's seat position, it is imperative to deactivate the front passenger's airbag if you are installing a rear-facing child seat there. Otherwise the child risks being killed or seriously injured should the airbag deploy.
Take care to comply with the fitting instructions given in the child seat manufacturers installation guide.
