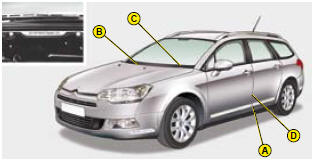

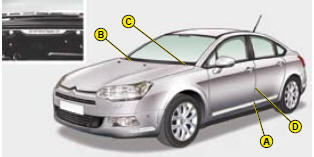

Vehicle identification
A Chassis number plate On the left hand door centre pillar.
1. EU type approval number.
2. Vehicle identification No. (VIN).
3. Gross vehicle weight.
4. Gross train weight.
5. Maximum weight on front axle.
6. Maximum weight on rear axle.
B Body serial number
C S erial number on dashboard
D Paint colour code and tyre reference
Tyre pressure
On the left hand door centre pillar.
The vehicle type and the identification number are also indicated on the registration document.
All CITROËN original replacement parts are available exclusively within the dealer network.
For your safety and in order to remain within the terms of the guarantee, you are advised to use only CITROËN replacement parts.
