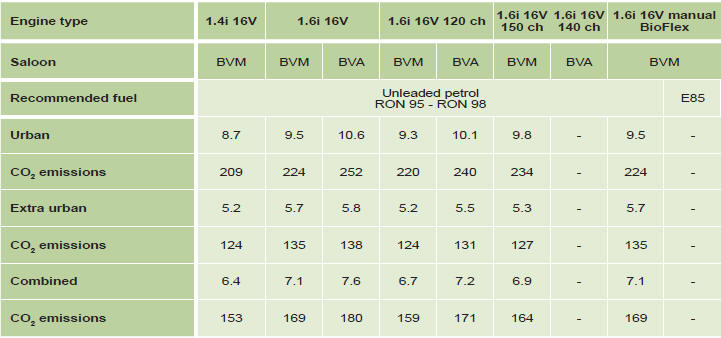

Fuel consumption
These consumption values are established in compliance with European directive 80/1268/CEE. They can vary depending on how the vehicle is driven, on the prevailing traffic conditions, on weather conditions, on vehicle load, on how the vehicle has been maintained and also on how many accessories are in use.
The fuel consumption figures quoted are correct at time of going to press.
See also:
Changing a wheel
Access to the spare wheel
Lift the boot floor.
Dimension of the spare wheel
If your spare wheel is of a different dimension to those on the vehicle (identified
by a label), it is essential to u ...
Rear lamps
(3-door model)
Identify the failed bulb.
Bulbs:
- Direction indicator: P21 W.
- Reversing lamp: P21 W.
- Stop lamps and sidelamps: P21/5.
Removal
To have access to the nut B, detach the boot ...
Rear lamps (tourer)
Rear lamp on wing
Remove the lateral boot trim A.
To do so :
1 Pull it towards towards the inside of the boot.
2 Pull it upwards.
3 Disconnect the connector B.
4 Unscrew the fixing screw C.
...
